How to Choose a Boiler Control System: Why Experience Matters
Summary: Choosing a boiler control system means evaluating more than automation logic. The best systems give operators clear guidance, help technicians diagnose problems faster, and free plants from long-term dependence on proprietary parts. Burner Sentry, built on Bruce Darling's 41 years of combustion and field-service experience, was designed around exactly those priorities.
Key Takeaways
- Operator-friendly boiler controls preserve institutional knowledge that plants can no longer count on having in the room, guiding less experienced staff with plain-language instructions instead of cryptic fault codes.
- Safety topped the list when Thermal Economy asked its own customers what mattered most, and it depends on operators being able to see limit and permissive status at a glance, not hunt for it.
- Nonproprietary components, on-screen documentation, and live trend data cut long-term risk and speed up troubleshooting when equipment does not behave the way it should.
The best boiler control system does more than automate a burner sequence. It should help operators understand why a boiler will—or will not—run, give maintenance personnel useful diagnostic information, simplify commissioning and troubleshooting, and protect the plant from dependence on proprietary components.
Most importantly, it should reflect the experience of people who understand boilers, burners, combustion, and plant operations.
Few people have watched boiler-control technology evolve as closely as Bruce Darling. During a 41-year career working with combustion systems, boilers, boiler controls, and burner management systems, Bruce has seen plants move from relay-based controls and basic annunciators to sophisticated PLC and HMI systems.
That experience helped shape Thermal Economy's approach to boiler controls and its Burner Sentry system: put useful information in front of operators, make the system easier to maintain, and give service personnel the tools they need to solve problems.
What should you look for in a boiler control system?
A modern industrial boiler control system should provide:
- Clear burner status and operating instructions
- Descriptive alarms rather than unexplained codes
- One-screen visibility into safety limits and permissives
- Password-protected setup and tuning through the HMI
- Live operating values and historical trends
- Access to drawings and bills of material
- Nonproprietary, readily available components
- Flexibility for new boilers and retrofit applications
- Support from people with practical combustion experience
These capabilities matter because many plants no longer have a deep bench of experienced boiler operators and utility engineers.
Bruce describes the challenge this way:
"Plants don't have engineers or other people running around asking, 'What's wrong with our plant? How are we going to improve it?' Very few do that anymore."
At the same time, boiler systems are becoming more sophisticated. Plants need controls that make operating knowledge easier to access rather than systems that require every operator to become a PLC programmer.
Operator-friendly boiler controls preserve knowledge
An experienced operator may recognize a developing boiler problem from a sound, a trend, or a subtle change in response. A less-experienced operator needs the control system to provide more guidance.
That principle is built into Thermal Economy controls.

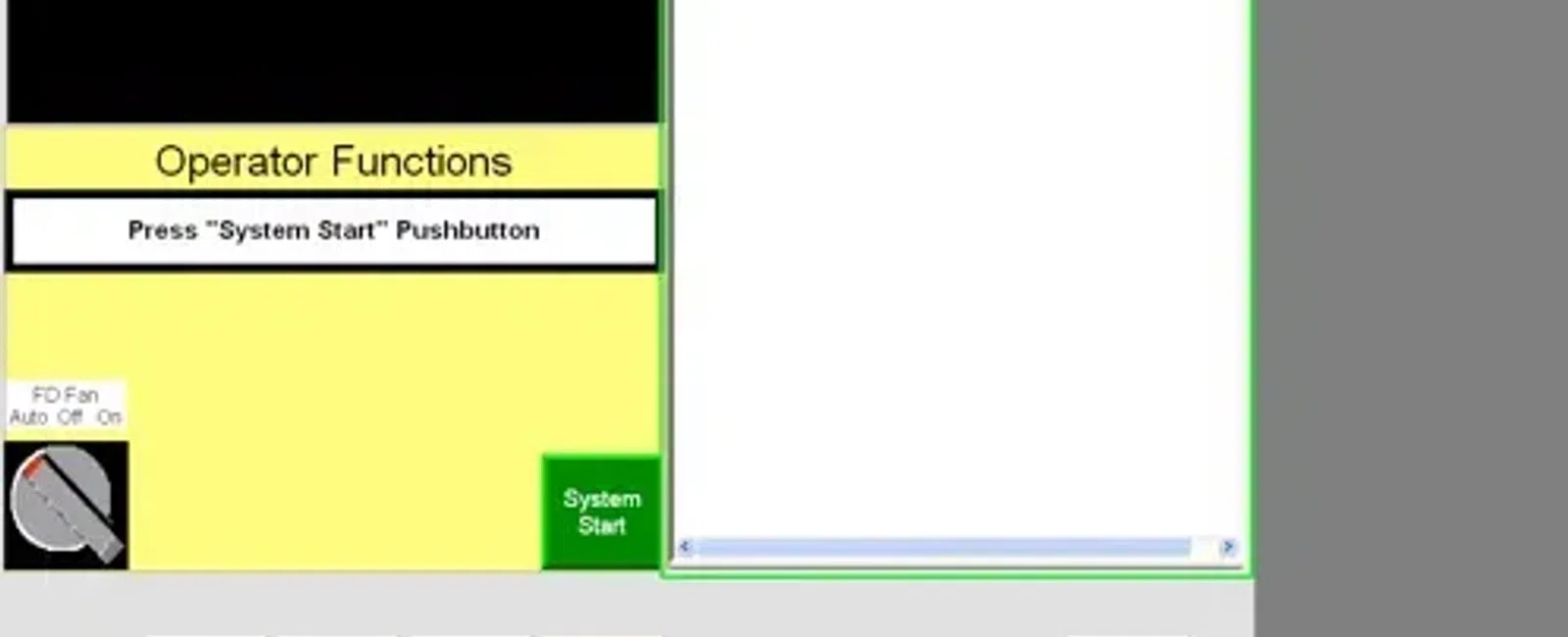

"What's cool about our system is that it prompts the operators and gives them instructions on what to do. It says, 'Push this button. Push that button.'"

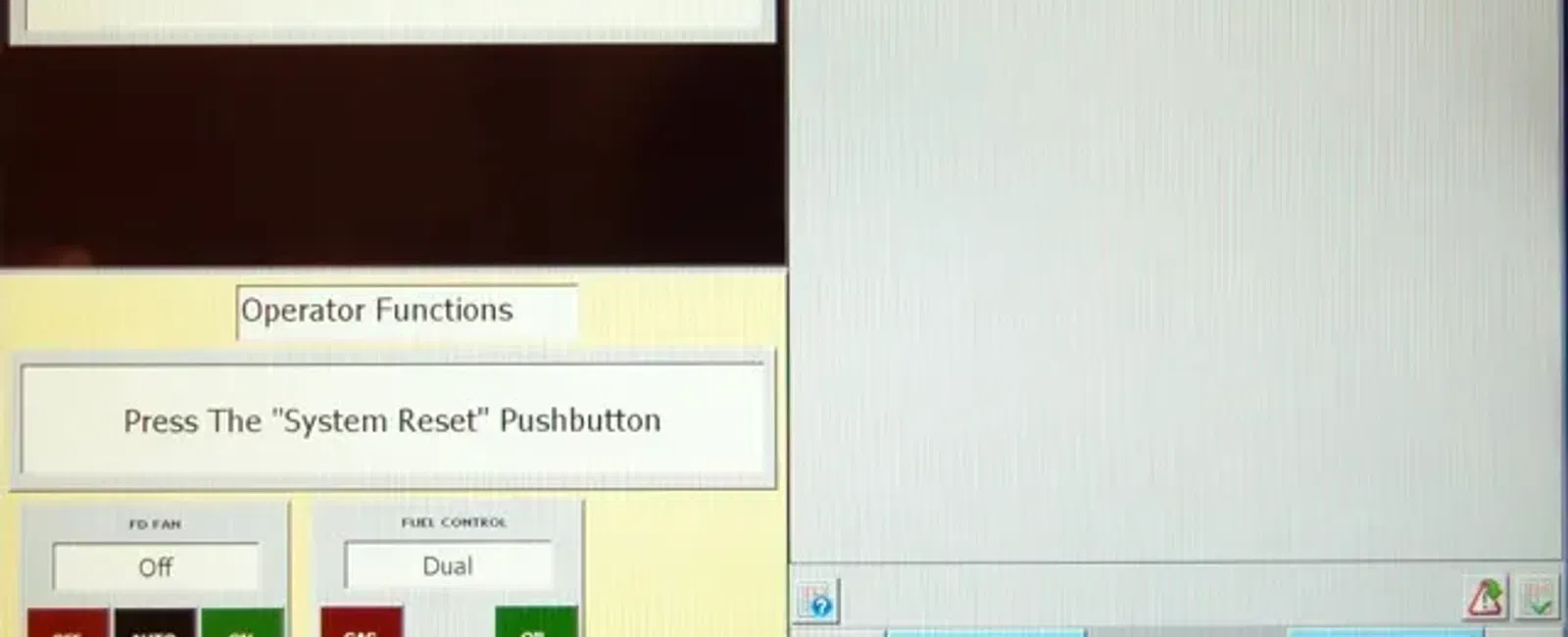

Burner Sentry uses plain-language status and instructional messages throughout the operating sequence. Instead of displaying only a code or a generic fault, it identifies conditions such as low gas pressure or an unsatisfied low-fire limit.
The purpose is not to remove operator judgment. It is to give the operator a clear starting point.
When the boiler cannot start, the first question should not be, "Who has the PLC software?" It should be, "Which condition has not been satisfied?"
Safety starts with clarity
When Bruce and his team asked customers what mattered most, the answer was not what they initially expected.
"Brian and I called several of our customers and said, 'What are the most important things to you?' What surprised us was that safety was number one."
Boiler safety depends on a coordinated series of limits, permissives, valves, flame scanners, pressure switches, water-level devices, and combustion conditions. Operators need to know whether those devices are in their normal state before attempting to start the burner.
Thermal Economy's Limit Status screen brings those conditions together in one place, using clear red-and-green indications. It's a one-stop shop telling the operator what's okay and not okay in running their equipment.
Bruce compares it to the warning system in a modern automobile:
"You get into your car, and you've got little switches that go off and say, 'Coolant's not at the right level. Oil's too low.' These tell you all those conditions."
The same principle applies to boiler controls. Important information should be visible, understandable, and connected to the action the operator needs to take.
Service personnel need more than an alarm code
A boiler trip is only the beginning of the troubleshooting process. The control system should help the technician understand what happened before the shutdown and what the equipment was doing at the time.
Thermal Economy makes important burner and boiler settings available through password-protected HMI screens.
"Everything's settable from the screen. You don't have to go into PLC programming software. We set the purge, the low-fire and light-off positions, the speeds of dampers, and the PID tuning parameters—all accessible from the screen."
This gives qualified personnel access to the information they need without requiring a separate programming computer for routine instrument ranging, fuel-air setup, tuning, and service functions.

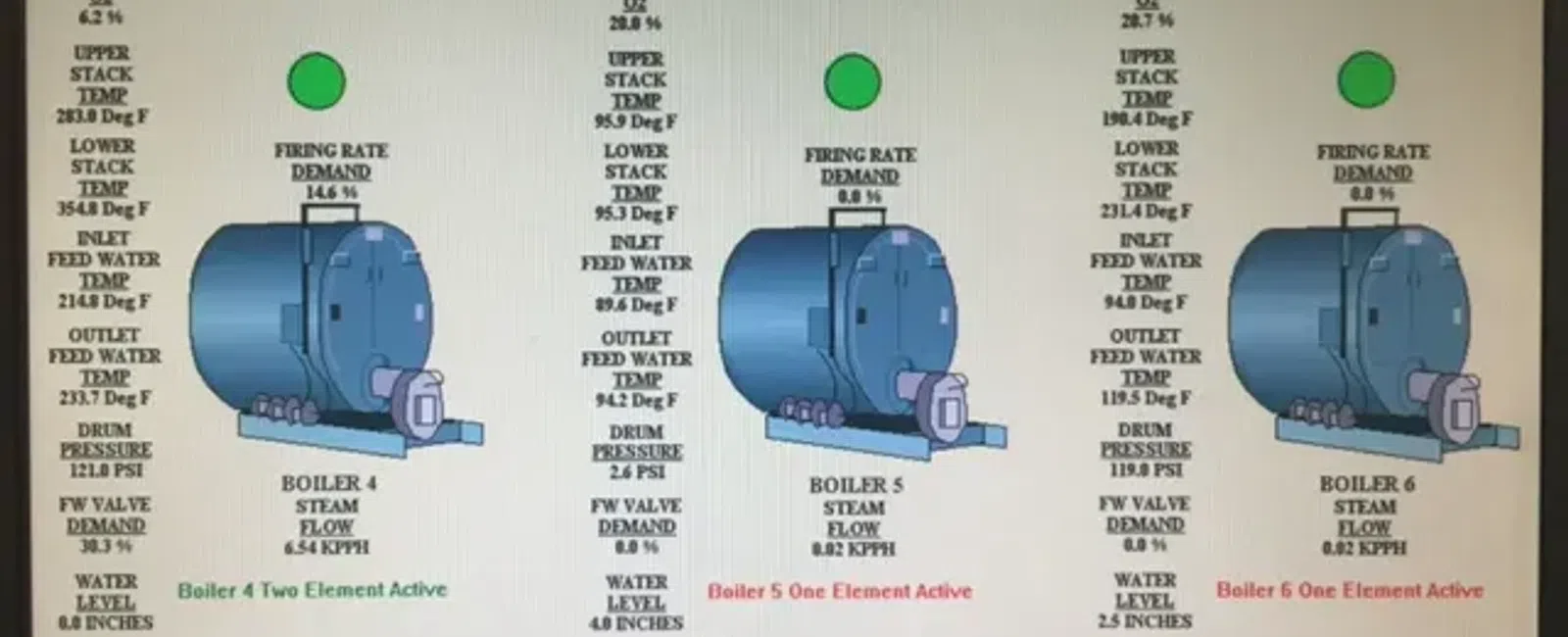

The system also displays live values such as O2, fuel flow, airflow, pressure, temperature, water level, firing rate, valve position, and 4-20 mA instrument signals.
Bruce explains how Thermal Economy uses those values during real service calls:
"The live values are up here all the time, and this is what we use to troubleshoot. Guys call up and say, 'The boiler's not working. O2 is high. O2 is low. Something's not right.' This is the screen where we say, 'Shoot us a photo of this screen,' and we troubleshoot all the time."
Better information can help a service technician diagnose the problem sooner, arrive with the right parts, and avoid spending hours investigating the wrong part of the system.
Historical trends explain why an alarm occurred
An alarm tells you what happened at a particular moment. A trend can reveal the chain of events that caused it.
A boiler may experience three low-water alarms in one week. The immediate event is clear, but the underlying cause may be a sticking feedwater valve, a pump problem, improper loop tuning, or a change in steam demand.
Bruce says trends are among the most valuable tools available to service personnel:
"The number one thing that we use—and people seem to use when they're troubleshooting—is trends. Maybe they've gotten three low-water-level alarms on their boiler. Then the question is: Why is that happening?"
Answering that question requires looking at relationships among measurements: valve position versus flow, firing rate versus header pressure, oxygen versus fuel flow, or water level versus steam demand.
A graph can display those relationships, but experience is still required to interpret them.
"You've got to know what the lines mean."
That statement captures an important difference between a generic automation platform and a boiler control system developed by people who understand combustion.
Boiler documentation should be available at the panel
One of the most common obstacles during an industrial service call is surprisingly basic: nobody can find the drawings.
The original documentation may be stored in an office, saved on a former employee's computer, or lost after years of modifications. The technician standing in front of the boiler is then forced to reconstruct how the system was built.
Thermal Economy can place project drawings and the bill of material directly on the HMI.
Immediate access to wiring diagrams, arrangement drawings, and component information can save valuable time during a shutdown.
Nonproprietary components reduce long-term risk
A boiler control system is a long-term investment. Plants should consider not only the initial purchase price, but also the availability of replacement parts, the cost of software, and the ability to support the system years later.
Burner Sentry is built around commercially available, nonproprietary components. It can be configured with PLC and HMI platforms from manufacturers such as Allen-Bradley, Siemens, Modicon, Triconex, and others.
This flexibility helps customers avoid being trapped by a single proprietary device or control platform. It also allows Thermal Economy to configure the system around the plant's standards and operating requirements.
Bruce Darling's experience behind Burner Sentry
Bruce Darling has spent 41 years working with combustion equipment, boilers, boiler controls, burner management systems, and the people responsible for operating them.
His experience is not limited to designing controls. It includes boiler startups, fuel-air adjustments, troubleshooting, field service, operator training, and responding when equipment does not behave as expected.
That practical background is embedded in the philosophy behind Burner Sentry:
- Tell the operator exactly what is happening.
- Make safety conditions easy to identify.
- Give service personnel the information needed to diagnose failures.
- Make setup and tuning accessible without unnecessary programming complexity.
- Use proven, nonproprietary components.
- Preserve the information future operators and technicians will need.
The Burner Sentry control logic has been field-proven in more than 175 PLC-based control-system installations. Thermal Economy provides engineered control systems for fired boilers, fired heaters, heat-recovery boilers, and other fuel-fired equipment throughout the United States.
Why choose Thermal Economy boiler controls?
Choosing Thermal Economy means selecting more than a PLC, touchscreen, or control panel.
It means choosing a boiler control system informed by decades of combustion and field-service experience. Burner Sentry was developed to help operators run equipment safely, help maintenance personnel troubleshoot it efficiently, and help plants reduce their long-term dependence on proprietary systems.
A control system cannot replace an experienced boiler operator or service technician. But it can preserve important knowledge, make that knowledge available to the next person, and help everyone make better decisions.
That is the difference between a control system that simply runs the boiler and one designed to help the entire plant operate more safely and reliably.
Talk with an experienced boiler-controls team
If you are planning a boiler control upgrade or evaluating a burner management system, Thermal Economy can help you assess your existing equipment, operating requirements, safety needs, and long-term service objectives.
